SERIES D-DOUBLE PASSAGE FOR TWO DIFFERENT FLUIDS

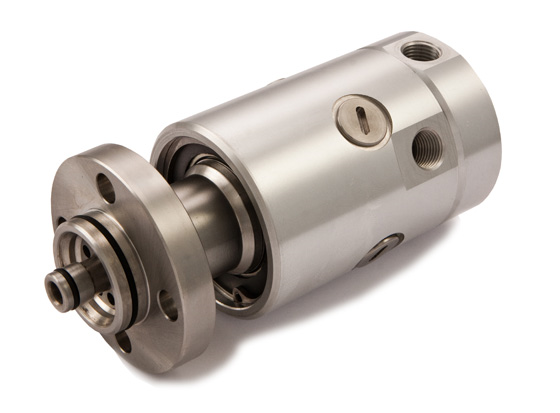

Rotoflux unions of the model D08 with two separated passages are employed in applications with two different fluids.
In case of any leakage there is no possibility of contact and contamination between the two fluids.
Do not use the unions at max application limits without consulting us.
|
|
|
MEDIUM |
PRESSURE |
TEMPERATURE |
RPM |
|
Passage |
B1 |
Hydraulic oil |
70 bar / 1015 PSI |
90°C / 195°F |
5 bar / 72.5 PSI – 5000 70 bar / 1015 – 10 |
|
Passage |
B2 |
Coolant |
40 bar / 580 PSI |
5000 |
|
|
Dry run |
/ |
|
Ordering code |
Double passage for 2 different fluid |
||||||||||||||||||||
|
|
B1 – B2 |
D1 |
D2 |
E |
ø F |
L1 |
L2 |
ø M |
ø N |
ø O |
ø P g6 |
Q |
R |
ø S |
U |
ø V |
X1 |
X2 |
Y |
Z |
Kg |
|
D08-105-06F |
G 1/4” |
40 mm2 |
ø6 28 mm2 |
150 |
68 |
66 |
139 |
68 |
52 |
25 |
35 |
10 |
12 |
9 4×90° |
10 |
12 |
22 |
32 |
M8 |
107 |
1.5 |
