SERIES B-HIGH SPEED, DRY RUN

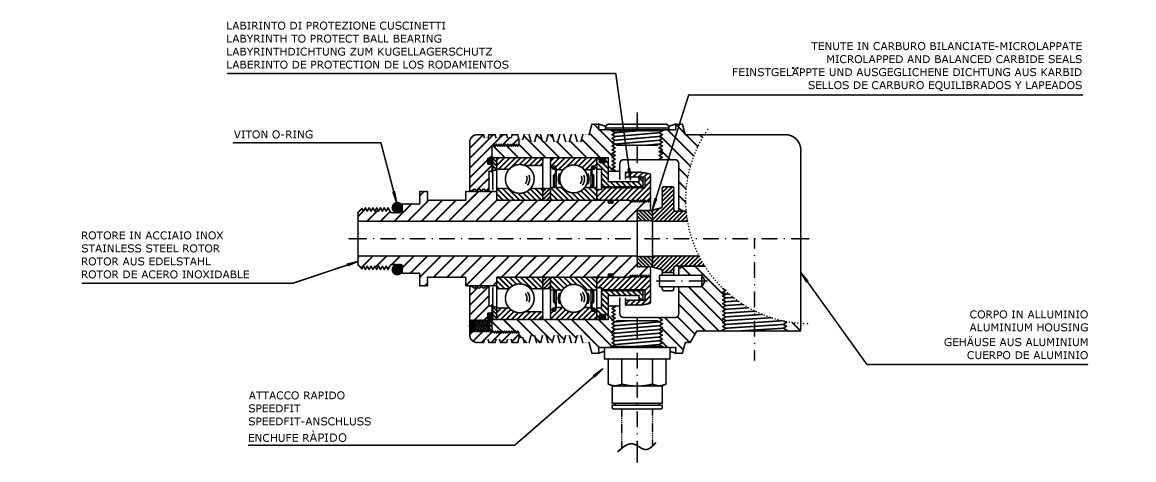

The unions of the model B have been designed for machine tool spindles rotating at high speed with fluid passing through or dry when needed.
The seals, balanced and microlapped, remain always closed without problems both with fluid passing through (wet run) or without fluid (dry run).
Do not use the unions at max application limits without consulting us.
|
MEDIUM |
MODEL |
PRESSURE |
TEMPERATURE |
RPM |
FILTRATION |
|
Coolant |
B08 |
100 bar / 1450 PSI |
90°C / 195°F |
20000 |
60 μ (MAX 100) |
|
B10 |
70 bar / 580 PSI |
15000 |
|||
|
Dry run |
B08 |
/ |
/ |
20000 |
/ |
|
B10 |
15000 |
|

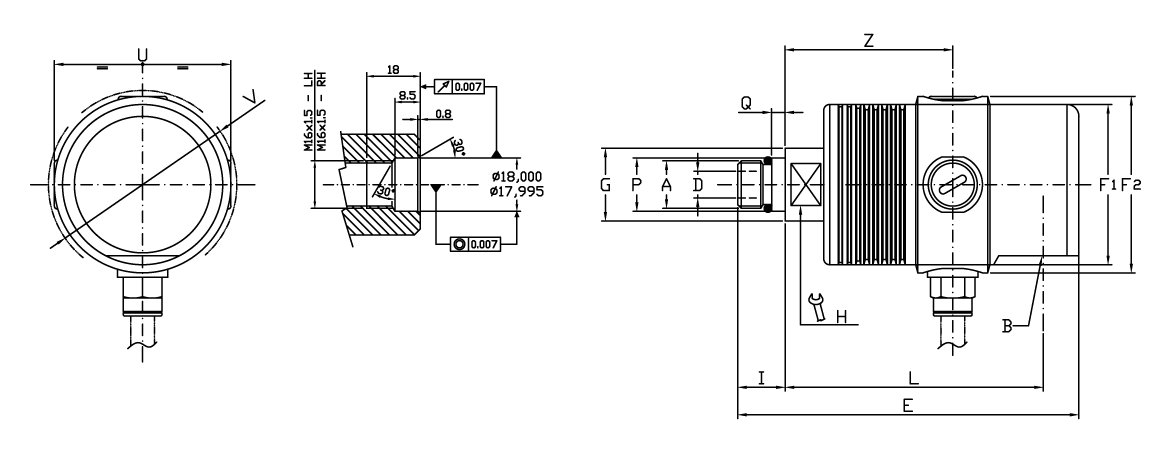

Ordering code |
90° Unions |
|||||||||||||||
|
|
A |
B |
ø D |
E |
ø F1 |
ø F2 |
ø G |
H |
I |
L |
ø P |
Q |
U |
ø V |
Z |
Kg |
|
B08-1501-04R |
M16 X 1.5 RH |
G 1/4 " |
5 |
101 |
44 |
49 |
24.5 |
17 |
16 |
76 |
18 |
4.5 |
49 |
52 |
49 |
0.6 |
|
B08-1501-05L |
M16 X 1.5 LH |
|||||||||||||||
|
B10-1701-04R |
M16 X 1.5 RH |
G 3/8 " |
9 |
110 |
54 |
59.5 |
24.5 |
17 |
16 |
87 |
18 |
4.5 |
59.5 |
63 |
56.5 |
0.8 |
|
B10-1701-05L |
M16 X 1.5 LH |
|||||||||||||||
|

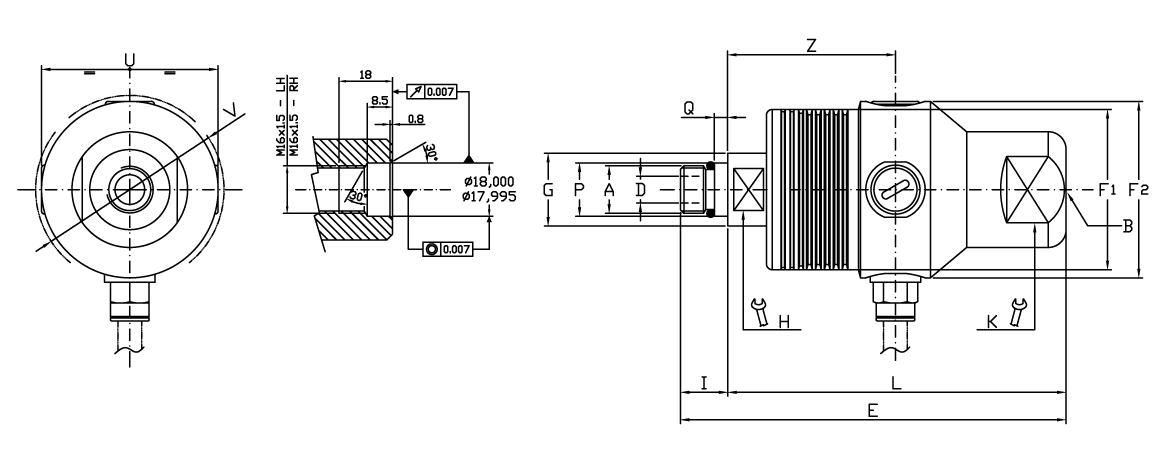

Ordering code |
Straight through Unions |
||||||||||||||||
|
|
A |
B |
ø D |
E |
ø F1 |
ø F2 |
ø G |
H |
K |
I |
L |
ø P |
Q |
U |
ø V |
Z |
Kg |
|
B08-1502-04R |
M16 X 1.5 RH |
G 1/4 " |
5 |
116 |
44 |
49 |
24.5 |
17 |
24 |
16 |
100 |
18 |
4.5 |
49 |
52 |
49 |
0.6 |
|
B08-1502-05L |
M16 X 1.5 LH |
||||||||||||||||
|
B10-1702-04R |
M16 X 1.5 RH |
G 3/8 " |
9 |
130 |
54 |
59.5 |
24.5 |
17 |
32 |
16 |
114 |
18 |
4.5 |
59.5 |
63 |
56.5 |
0.8 |
|
B10-1702-05L |
M16 X 1.5 LH |
||||||||||||||||
