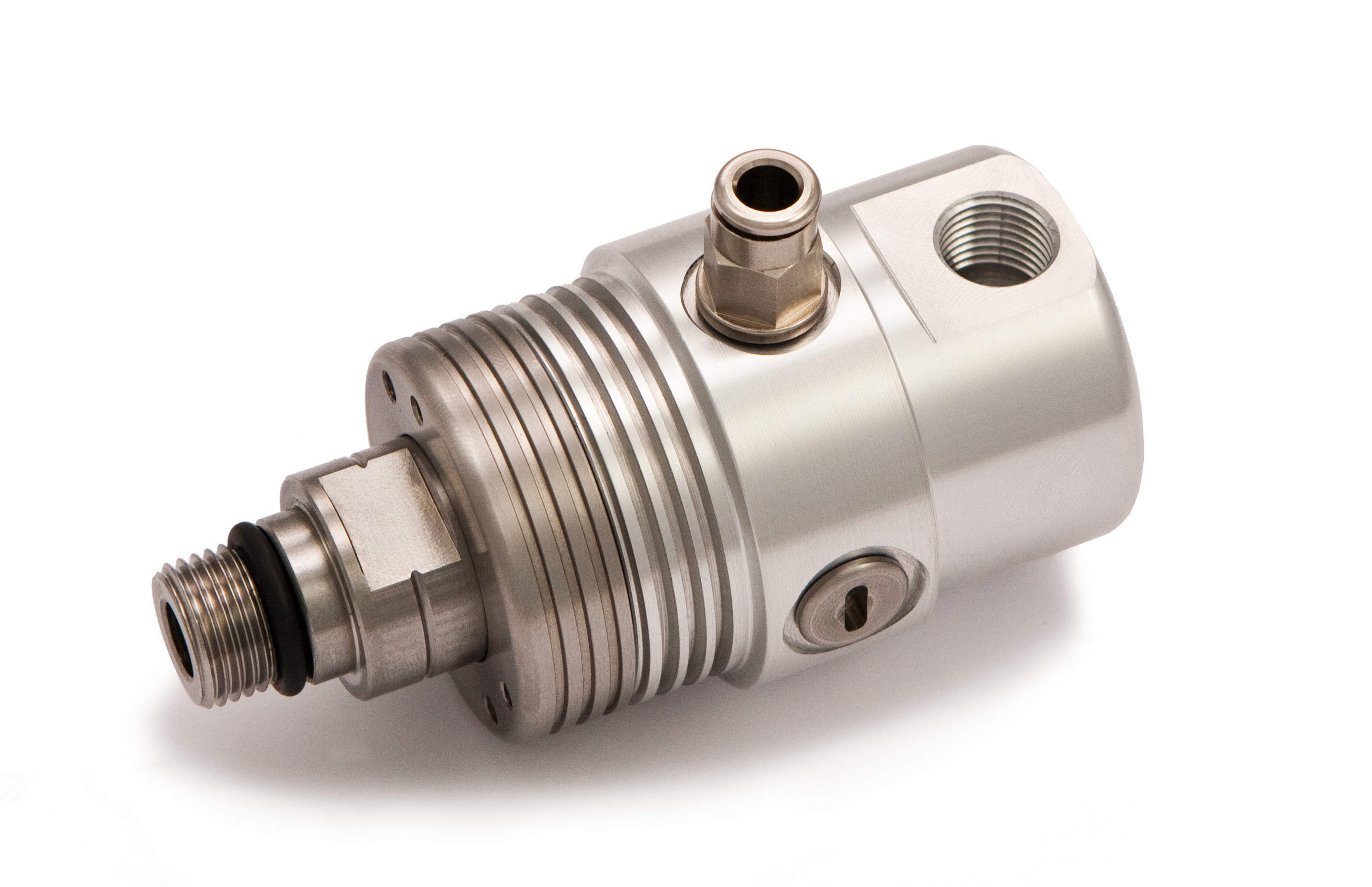

SERIES B-HIGH SPEED

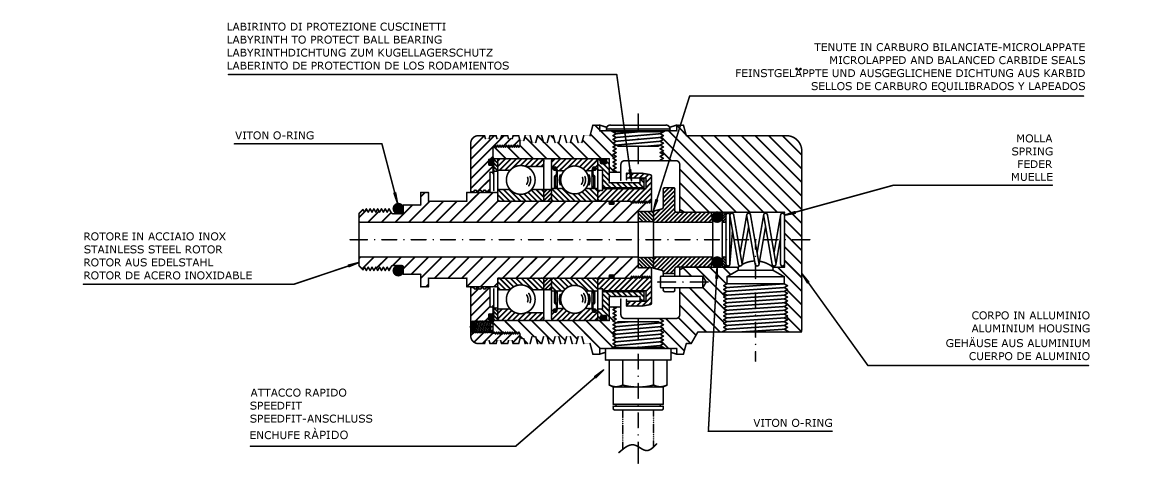

The unions of the model B are used for the passage of coolant through the machine tool spindles rotating at high speed.
Well balanced seal assemblies, in carbide, against carbide allow a low friction torque and long life even with a poor filtration of the coolant.
Do not use the unions at max application limits without consulting us.
|
MEDIUM |
MODEL |
PRESSURE |
TEMPERATURE |
RPM |
FILTRATION |
|
Coolant |
B08 |
100 bar / 1450 PSI |
90°C / 195°F |
20000 |
60 μ (MAX 100) |
|
B10 |
70 bar / 1.015 PSI |
15000 |
|||
|
Dry run |
B08 |
/ |
/ |
NO |
/ |
|
B10 |
NO |
|
Ordering code |

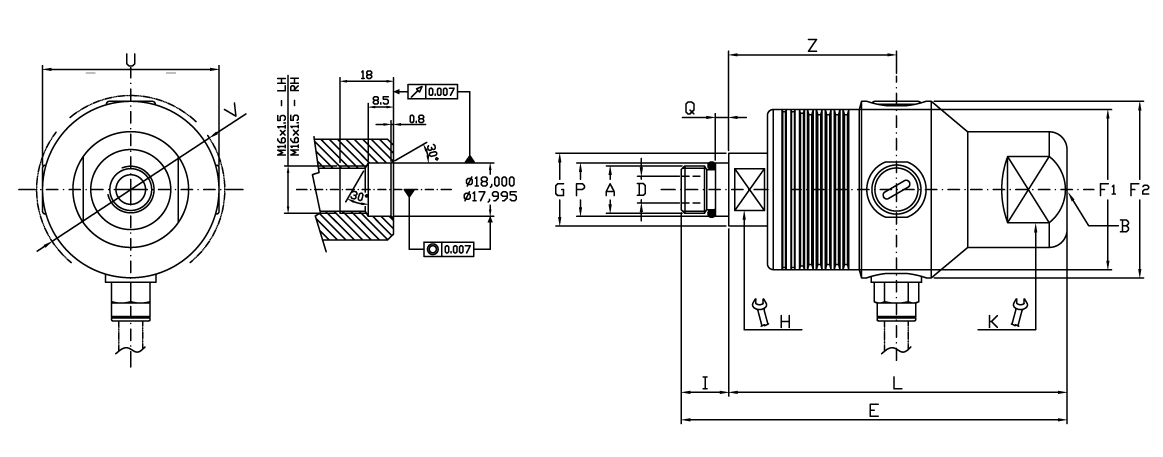

90° Unions |
|||||||||||||||
|
|
A |
B |
ø D |
E |
ø F1 |
ø F2 |
ø G |
H |
I |
L |
ø P |
Q |
U |
ø V |
Z |
Kg |
|
B08-1301-04R |
M16 X 1.5 RH |
G 1/4 " |
5 |
101 |
44 |
49 |
24.5 |
17 |
16 |
76 |
18 |
4.5 |
49 |
52 |
49 |
0.6 |
|
B08-1301-05L |
M16 X 1.5 LH |
|||||||||||||||
|
B10-1301-04R |
M16 X 1.5 RH |
G 3/8 " |
9 |
110 |
54 |
59.5 |
24.5 |
17 |
16 |
87 |
18 |
4.5 |
59.5 |
63 |
56.5 |
0.8 |
|
B10-1301-05L |
M16 X 1.5 LH |
|||||||||||||||
|
Ordering code |

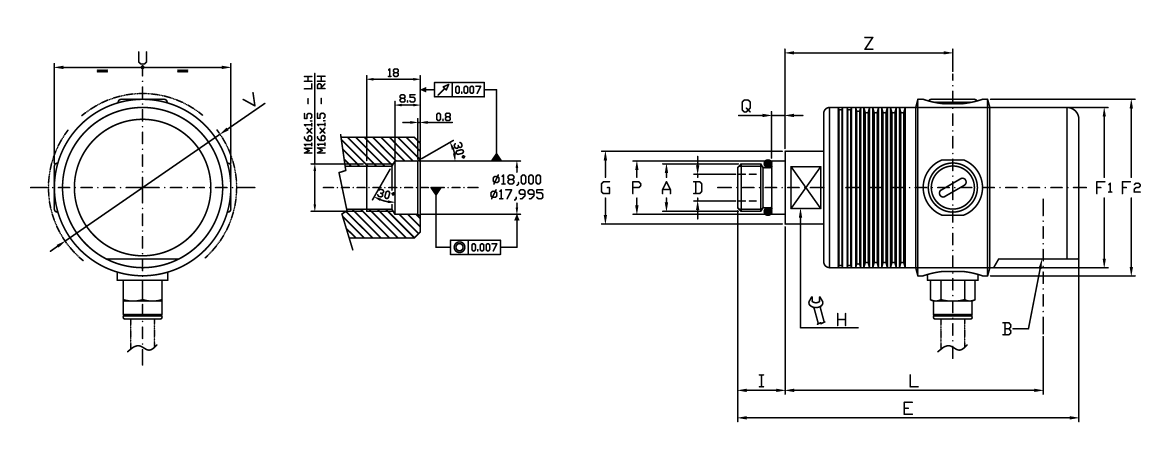

Straight through Unions |
||||||||||||||||
|
|
A |
B |
ø D |
E |
ø F1 |
ø F2 |
ø G |
H |
K |
I |
L |
ø P |
Q |
U |
ø V |
Z |
Kg |
|
B08-1302-04R |
M16 X 1.5 RH |
G 1/4 " |
5 |
116 |
44 |
49 |
24.5 |
17 |
24 |
16 |
100 |
18 |
4.5 |
49 |
52 |
49 |
0.6 |
|
B08-1302-05L |
M16 X 1.5 LH |
||||||||||||||||
|
B10-1302-04R |
M16 X 1.5 RH |
G 3/8 " |
9 |
130 |
54 |
59.5 |
24.5 |
17 |
32 |
16 |
114 |
18 |
4.5 |
59.5 |
63 |
56.5 |
0.8 |
|
B10-1302-05L |
M16 X 1.5 LH |
||||||||||||||||
