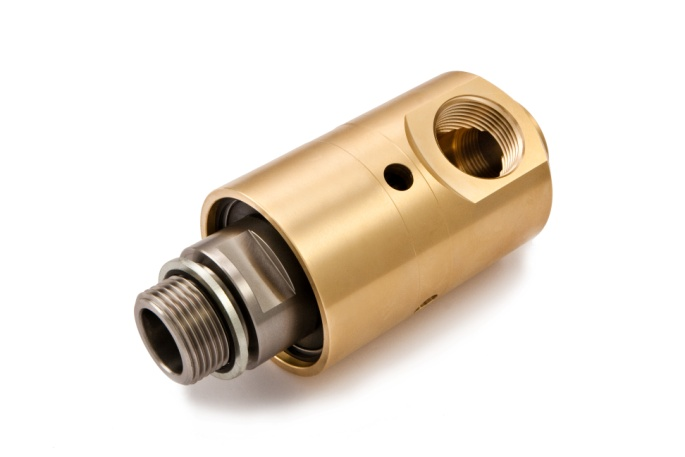

SERIES S - UNIVERSAL

SERIES S - UNIVERSAL


These unions are available with two different balanced and microlapped sealing assemblies:



N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.

D Seal (Heavy duty sealing) with carbide to carbide seals for poor filtrated water or abrasive fluids.

Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C).

Do not use the unions at max application limits without consulting us.

Swipe left and right to check more information.


PRESSURE

TEMPERATURE

RPM

Water

¼” - 1½” – 50 bar / 725 PSI
2″ – 40 bar / 580 PSI

95°C / 203°F

¼” - ¾” – 3500
1″ – 3000
¼” - 1½” – 2500
2″ – 750

Swipe left and right to check more information.

Ordering code

Single passage unions

N seal

D seals

A

B

C

ø D

E

ø F1

ø F2

ø G

H

I

L

Kg

S08-1300-01R

S08-1301-01R

G 1/4″ RH

G 1/4″

–

7

88

43

–

20

17

11

67

0.6

S08-1300-02L

S08-1301-02L

G 1/4″ LH

S10-1300-01R

S10-1301-01R

G 3/8″ RH

G 3/8″

G 1/4″

9

106

43

–

25

17

13

73

0.7

S10-1300-02L

S10-1301-02L

G 3/8″” LH

S15-1300-01R

S15-1301-01R

G 1/2″ RH

G 1/2″

G 3/8″

13

120

54

–

30

24

13

82

1.3

S15-1300-02L

S15-1301-02L

G 1/2″ LH

S20-1300-01R

S20-1301-01R

G 3/4″ RH

G 3/4″

G 1/2″

18

139

64

–

37

30

16

94

1.9

S20-1300-02L

S20-1301-02L

G 3/4″ LH

S25-1300-01R

S25-1301-01R

G 1″ RH

G 1″

G 3/4″

23

162

69

–

45

36

20

105

2.5

S25-1300-02L

S25-1301-02L

G 1″ LH

S32-1300-01R

S32-1301-01R

G 1 1/4″ RH

G 1 1/4″

G 1″

31

181

85

94

55

46

22

119

3.9

S32-1300-02L

S32-1301-02L

G 1 1/4″ LH

S40-1300-01R

S40-1301-01R

G 1 1/2″ RH

G 1 1/2″

G 1 1/4″

36

208

93

109

60

50

24

132

5.1

S40-1300-02L

S40-1301-02L

G 1 1/2″ LH

S50-1300-01R

S50-1301-01R

G 2″ RH

G 2″

G 1 1/4″

48

223

112

119

70

60

25

139

6.8

S50-1300-02L

S50-1301-02L

G 2″ LH

Metric threads , NPT threads and other threads are available.
Swipe left and right to check more information.

Ordering code

Double passage stationary siphon

N seal

D seal

A

B

ø D

E

ø F1

ø F2

ø G

H

I

L

T

U

V

W

Kg

S10-1300-01R-800

S10-1301-01R-800

G 3/8″ RH

G 3/8″

9

129

43

–

25

17

13

73

92

10

M6

G 1/4″

0.8

S10-1300-02L-800

S10-1301-02L-800

G 3/8″” LH

S15-1300-01R-800

S15-1301-01R-800

G 1/2″ RH

G 1/2″

13

146

54

–

30

24

13

82

105

12

G 1/8″

G 3/8″

1.4

S15-1300-02L-800

S15-1301-02L-800

G 1/2″ LH

S20-1300-01R-800

S20-1301-01R-800

G 3/4″ RH

G 3/4″

18

173

64

–

37

30

16

94

123

14

G 1/4″

G 1/2″

2.0

S20-1300-02L-800

S20-1301-02L-800

G 3/4″ LH

S25-1300-01R-800

S25-1301-01R-800

G 1″ RH

G 1″

23

200

69

–

45

36

20

105

144

16

G 3/8″

G 1/2″

2.8

S25-1300-02L-800

S25-1301-02L-800

G 1″ LH

S32-1300-01R-800

S32-1301-01R-800

G 1 1/4″ RH

G 1 1/4″

31

224

85

94

55

46

22

119

158

16

G 1/2″

G 3/4″

4.3

S32-1300-02L-800

S32-1301-02L-800

G 1 1/4″ LH

S40-1300-01R-800

S40-1301-01R-800

G 1 1/2″ RH

G 1 1/2″

36

256

93

109

60

50

24

132

177

18

G 3/4″

G 1″

5.4

S40-1300-02L-800

S40-1301-02L-800

G 1 1/2″ LH

S50-1300-01R-800

S50-1301-01R-800

G 2″ RH

G 2″

48

281

112

119

70

60

25

139

193

20

G 1″

G 1 1/4″

7.2

S50-1300-02L-800

S50-1301-02L-800

G 2″ LH


Metric threads , NPT threads and other threads are available.
