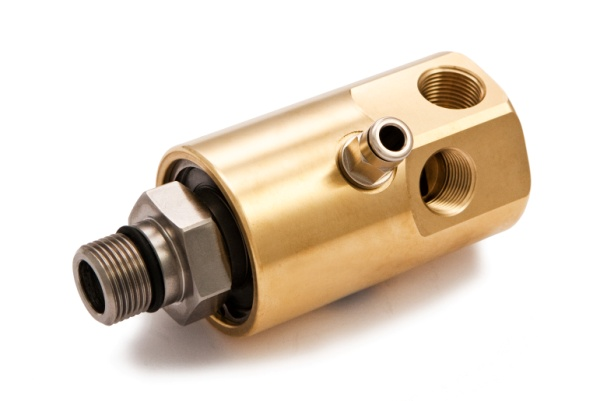

SERIES S – ROTOFLUX FOR PRINTING MACHINES DUO


These unions are available with two different balanced and microlapped sealing assemblies:

N Seal (Standard Sealing) with carbon graphite to carbide seals for application with filtered water.

Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C).

Do not use the unions at max application limits without consulting us.

Swipe left and right to check more information.

Ordering code	Double passage stationary siphon unions

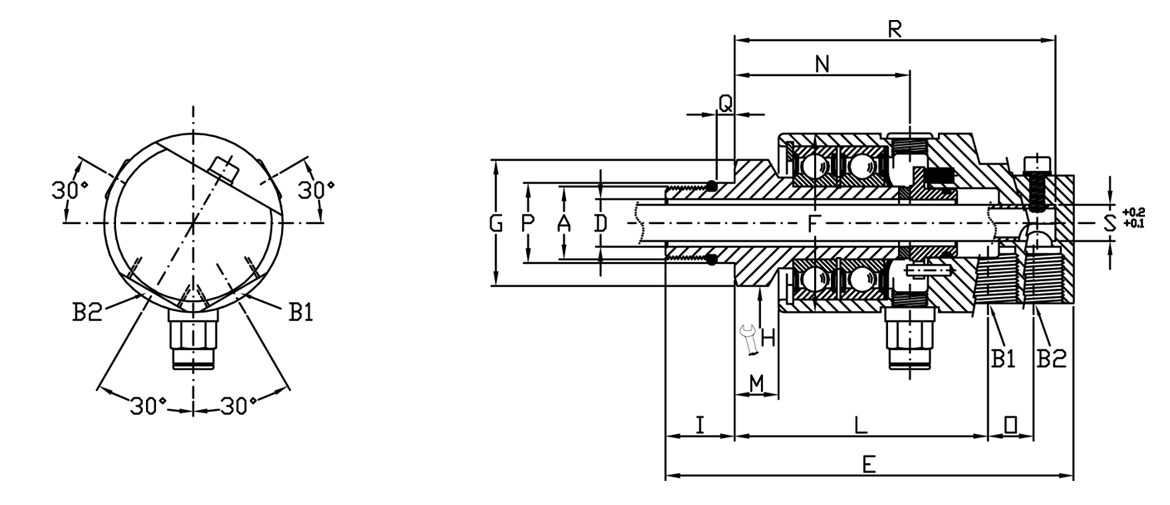

Water	A	B1	ø D	E	ø F	G	H	I	L	M	N	O	ø P	Q	R	ø S	Kg
S10-2382-33R	M16 X 1,5 RH	G 3/8″	10	116	49	24	19	16	76,5	19	55	12,5	18	5	95	8	1
S10-2382-34L	M16 X 1,5 LH
S15-2382-33R	M20 X 1,5 RH	G 3/8″	13	112	49	–	SW 30	19	69,5	12	48	12,5	21	5	88	8	1
S15-2382-34L	M20 X 1,5 LH
S15-2386-33R	M20 X 1,5 RH	G 3/8″	13	112	49	–	SW 30	19	69,5	12	48	12,5	21	5	88	10	1
S15-2386-34L	M20 X 1,5 LH

Swipe left and right to check more information.

Customer interface
	A1	B2	I1	ø P1 H7	Q1	R	ø T	U	V
S10-2382-33R	M16 X 1,5 RH	G 3/8″	18	18	8.5	95	8 x 1	4	R.4
S10-2382-34L	M16 X 1,5 LH
S15-2382-33R	M20 X 1,5 RH	G 3/8″	21	21	8.5	88	8 x 1	4	R.5
S15-2382-34L	M20 X 1,5 LH
S15-2386-33R	M20 X 1,5 RH	G 3/8″	21	21	8.5	88	10 x 1	5	R.5
S15-2386-34R	M20 X 1,5 LH

Swipe left and right to check more information.

Ordering code	Double passage stationary siphon unions
Water	A	B1 = B2	ø D	E	ø F	H	I	L	M	N	O	R	ø S	Kg
S15-2382-31R	G 1/2″ RH	G 3/8″	13	112	49	SW 30	17	71,5	14	50	12,5	90	8	1
S15-2382-32L	G 1/2″ LH
S15-2386-31R	G 1/2″ RH	G 3/8″	13	112	49	SW 30	17	71,5	14	50	12,5	90	10	1
S15-2386-32L	G 1/2″ LH

Swipe left and right to check more information.

Customer interface
	A1	I1	Q1	R	ø T	U	V
S15-2382-31R	G 1/2″ RH	20	8.5	90	8 x 1	4	R.4
S15-2382-32L	G 1/2″ LH
S15-2386-31R	G 1/2″ RH	20	8.5	90	10 x 1	5	R.5
S15-2386-32R	G 1/2″ LH
