SERIES L – ROTOFLUX LOW TORQUE

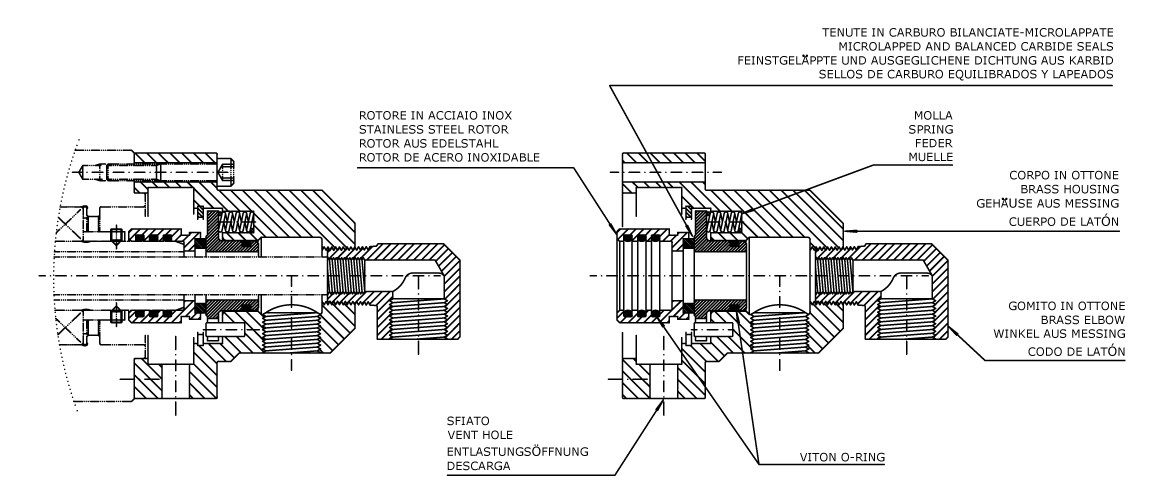

These unions are available with balance and microlapped carbide to carbide seals.
Fluid pressure over 8 bar is allowed only when the fluid is cool water at max temperature 125°F (50°C).Do not use the unions at max application limits without consulting us.
|
|
PRESSURE |
TEMPERATURE |
RPM |
|
Water |
16 bar / 232 PSI |
95°C / 203°F |
5000 |
|
Ordering code |
Double passage stationary siphon unions |
|||||||||||||||||||
|
Water |
B |
ø D |
E |
ø F |
G |
H |
J |
L |
ø M F9 |
ø N |
O |
ø P F7 |
Q |
R |
S |
T |
U |
V |
W |
Kg |
|
L20-1301-01P-800 |
G 1/2″ |
17,5 |
118 |
89 |
34 |
30 |
28 |
57 |
60 |
75 |
5 |
25 |
25 |
18 |
7 4×90° |
66 |
14 |
G 1/4″ |
G 1/2″ |
2,9 |
|
L25-1301-01P-800 |
G 3/4″ |
24 |
128 |
98 |
41 |
30 |
32 |
59 |
65 |
85 |
5 |
30 |
30 |
18 |
7 4×90° |
75 |
16 |
G 3/8″ |
G 1/2″ |
3,4 |
|
Ordering code |
Double passage rotating siphon |
|||||||||||||||||||
|
Water |
B |
ø D |
E |
ø F |
ø G |
H |
J |
L |
ø M F9 |
ø N |
O |
ø P F7 |
Q |
R |
S |
T |
U |
ø V h9 |
W |
Kg |
|
L20-1301-01P-810 |
G 1/2″ |
17,5 |
118 |
89 |
34 |
30 |
28 |
57 |
60 |
75 |
5 |
25 |
25 |
18 |
7 4×90° |
72 |
24 |
12,9 |
G 1/2″ |
2,9 |
|
L25-1301-01P-810 |
G 3/4″ |
24 |
128 |
98 |
41 |
30 |
32 |
59 |
65 |
85 |
5 |
30 |
30 |
18 |
7 4×90° |
78 |
25 |
15,9 |
G 1/2″ |
3,4 |
|
Customer interface |
|||||||
|
ø D1 |
ø M1 h8 |
ø N1 |
O |
ø P1 h6 |
ø R1 |
S1 |
|
|
L20 |
17,5 |
60 |
75 |
5 |
25 |
18 |
M6 4×90° |
|
L25 |
24 |
65 |
85 |
5 |
30 |
18 |
M6 4×90° |
