SERIES D – DOUBLE PASSAGE FOR AIR, VACUUM AND HYDRAULIC OIL

SERIES D – DOUBLE PASSAGE FOR AIR, VACUUM AND HYDRAULIC OIL

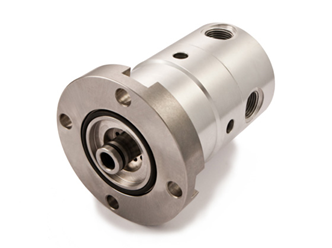

The ROTOFLUX unions model D15 with two separate passages are used to operate clutches or rotating pistons with air or oil.

The same type of fluid must be used for the two passages to avoid eventual mixture.

Do not use the unions at max application limits without consulting us.

Swipe left and right to check more information.

	PRESSURE	TEMPERATURE	RPM
Air	10 bar / 145 PSI	90°C / 195°F	1500
Vacuum	7 kPa / 2″ Hg		3500
Hydraulic oil	10 bar / 145 PSI		3500

Swipe left and right to check more information.

Ordering code

Double passage union

B1-B2

D1

D

E

ø F

L1

L2

øN

ø O

ø P f8

Q

øS

U

øV

Kg

D15-302-03F

G 1/2″

126mm2

Ø12 113mm2

135

84

102

119

90.5

48

108

19

11 4×90°

10

19

3
