■ PJ-saving system (Patented high-performance & less consumables filtration system.)
■ Energy saving about 40%.
■ Setting multi pressure by touch panel.
■ HMI touch panel.
■ Customized design for Swiss lathe.
■ Ideal for gun drilling and deep hole.
|
Fluid Type |
Oil base coolant (Viscosity 15-32cst) |
|
Control Panel |
HMI touch panel |
|
Max working pressure |
140 Bar / 2000 PSI |
|
Max flow rate |
22 Liter/min |
|
Number of ports |
4 (Standard) |
|
Filtration |
5µ (Filter Bag) |
|
Tank capacity |
83 Liter |
|

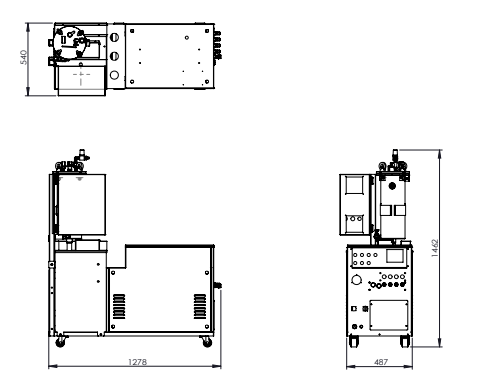

Dimension (D*W*H) |
1456 x 690 x 1348 mm |
|
Weight |
274 kg |
Options：
(1.) 2-8 ports outlet
(2.) Oil chiller
(3.) Gundrill pressure detector
